5-10 Ton Diesel Forklift(FD50-FD100)

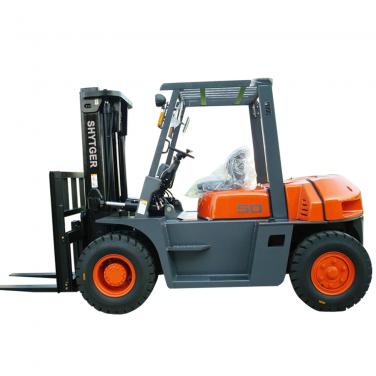

5-10 Ton Diesel Forklift(FD50-FD100)

$9,850.00
  • Description
  • Reviews
  • Shipping & Returns
Standard equipments:
Wide view mast,Cyclone air cleaner,Load one-way value,Preheat indictor,King Pin,Engine-start switch,Standard backrest,Long-life tires,Overhead guard,Oil and water separator,Power steering,Adjustable steering column,Radiator water tank,Side roller,Standard carriage.Oil temperature cooler,Headlamp and steering indicator lamp,Charge indicator lamp,Hour meter,Oil warning light of engine.Water temperature guage,Fuel gauge,Reversing light,Electric horn,Neutral-safety switch,Rear mirrir,Tools,Reversing Buzzer,General seat.

Options:
Fire extingulsher,cab,Heater unit,Rear work light,Solid tires,Fireproof sliencer,Upper exhaust pipe,Tilt cylinder jacket,Rotating warning light,LPG conversion device,Pre-filtration air intake device.

Attachments:
Side shifter,Fork positioner,Carpet boom,Fork extension,Longer forks,Clamps,Others.

Features:
1.Cleaner,more efficient engines
2.Esay maintenance
3.Easier entry and exit form an extra-wide step
General1ModelFD50TFD60TFD70TFD80FD100
2Power TypeDieselDieselDieselDieselDiesel
3Rated Capacitykg500060007000800010000
4Load Centremm600600600600600
Characteristic & Dimension 5Lift Heightmm30003000300030003000
6Fork SizeL×W×Tmm1220×150×60 1220×150×601220×150×651220×170×75 1220×175×75
7Mast Tilt AngleF/RDeg6°/12°6°/12°6°/12°6°/12°6°/12°
8Front Overhang (Wheel center to fork face)mm615615620620710
9Ground Clearance (Bottom of mast)mm190190190190245
10Overall DimensionLength to face of fork (Without fork)mm35303530359037404255
11Overall Widthmm19951995199519952245
12Mast Lowered Heightmm25002500250026252850
13Mast Extended Height (With backrest)mm44204420442044204330
14Overhead Guard Heightmm24502450245024502560
15Turning Radius (Outside)mm33003300336035503900
Performance16SpeedTravel (Full load)km/h26262626/3024/30
17Lifting (Full load)mm/s500500450450/500390/410
18Max. Gradeability (Full/ no load)%42/1938/1933/1926/2224/20
Chassis19TireFront 8.25×15-14PR 8.25×15-14PR 8.25×15-14PR 8.25×15-14PR 9.00×20-14PR
20Rear8.25×15-14PR 8.25×15-14PR 8.25×15-14PR 8.25×15-14PR 9.00×20-14PR
21Wheelbasemm22502250225024002800
22Service Weightkg8050875094501045012450
Power & Transmission 23BatteryVoltage/CapacityV/Ah(12V/80Ah)x2(12V/80Ah)x2(12V/80Ah)x2(12V/80Ah)x2(12V/80Ah)x2
24EngineModel6BG16BG16BG16BG16BG1
25ManufactureISUZUISUZUISUZUISUZUISUZU
26Rated Outputkw/rpm82.3/2000 82.3/2000 82.3/2000 82.3/2000 82.3/2000
27Rated TorqueN·m/rpm418/1500 418/1500 418/1500 418/1500 418/1500
28No. of Cylinder66666
29Bore × Strokemm105×125105×125105×125105X125105X125
30Displacement
