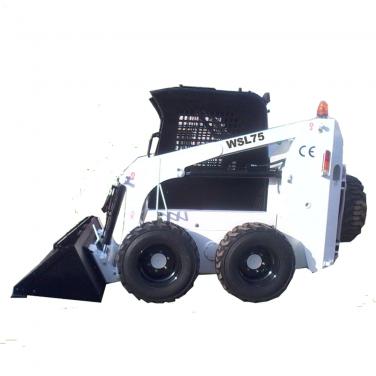

500Kg-1600Kg Wheel Loader(WSL50-WSL160)

1.Good quality,low price.

2.Professional service, and spare parts supply.

3.Operating capacity:500-1600kg

Full Hydraulic Control System
Full hydraulic control system provides increased productivity, reduced operator fatigue, stable performance. It controls the hydraulic fluid to achieve breaking. The hydraulic control systen prevents operator’s faulty operation, optimizes internal hydraulic components, and greatly reduces the intermediate links.

Powerful Perkins/kubota/Deutz/Xinchai engine
The newest perkins/kubota/Deutz/Xinchai engine technology is used in the Forway wheel loader. The new diesels have economic fuel consumption values.

Optimization of the machine structure
Optimized the structure of components, increased ground clearance is based on the assurance of machine’s stability of vertical and horizontal element. Intgrated electromagnetic valve controls the speed, break, attachment valve sheet in muli-way valve, simplifies the hydraulic pipe routings. Rapid lower device allow the lift arm lower quickly after working. The joystick control lwver has a electric magnetic self-lock system, which could prevent the operator’s faulty operation automatically.

Serviceability
skid steers have long been the best for serviceability.  Now the Alpha Series is even easier – with all service and maintenance points easily accessible through the rear of the machine, while the tilting cab provides easy access for repairs

Performance	1	Model			WSL50	WSL65	WSL70	WSL75	WSL75D
	2	Operating Load Capacity	Kg		500	650	700	750	750
	3	Bucket Capacity	m3		0.25	0.47	0.45	0.55	0.44
	4	Max. Loading Capacity	Kg		1000	1300	1496	1720	1500
	6	Bucket Lifting Force	Kg		1200	1500	1800	1885	1800
	7	Arm Lifting Force	Kg		1000	1300	1340	1660	1500
	9	Max. Travelling Speed	Km/h		12	11.2	11.2	12.2	11.2
	11	Rated Flux	L/min		50	60	62.5	75	75
	13	Fuel Tank Capacity	L		50	60	57	83	75
	14	Deadweight with Bucket	Kg		2200	2900	2800	3500	2900
Dimensions	15	Tyre			10.0/75-15.3	10-16.5	10-16.5	12-16.5	10-16.5
	16	Overall Operating Height	mm		3300	3535	3830	3900	3601
	17	Height to the Top of Cabin	mm		2000	2090	2150	2300	1575
	18	Overall Length without Bucket	mm		2300	2650	2630	2800	2610
	19	Overall Length with Bucket	mm		2900	3525	3360	3500	3390
	20	Dumping Angle at Max. Height	deg		40	55	36.5	37	40
	21	Dumping Height	mm		2050	2100	2290	2200	2068
	22	Dumping Reach	mm		790	750	419	640	405
	23	Rollback of Bucket on Ground	deg		31	31	29.5	31	38
	24	Rollback of Bucket at Full Height	deg		97	97	98	98	98
	25	Wheelbase	mm		891	991	992	1050	1195
	26	Ground Clearance	mm		150	210	204	190	188
	28	Front Turning Radius without Bucket	mm		1170	1260	1272	1360	1262
	29	Front Turning Radius	mm		2005	2090	2033	2200	2058
	30	Rear Turning Radius	mm		1430	1770	1590	1870	1588
