2.Steering system equipped with Horizontal buy oil cylinder for easy and agile steering axle with sufficient stiffness and strength.
3.Mast traverse mechanism actuated by chain drive function steady and reliable.
4.Power transmitted through clutch gearbox and chain drive to driving axle construction compact and reliable maintenance convenient.
Transmission | Hydraulical | |||||

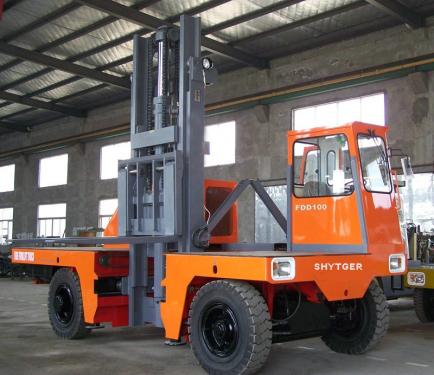

Model | FDD30 | FDD40 | FDD50 | FDD60 | FDD80 | FDD100 |
Code | M3D | M4D | M5D | M6D | M8 | M10 |
Max.lift capacity/CG of cargo (kg/mm) | 3000/600 | 4000/600 | 5000/600 | 6000/600 | 8000/760 | 10000/760 |
Max. lift height（laden） (mm) | 3500 | 3000 | 3550 | 3550 | 3600 | 3600 |
Max. lift speed （laden） (m/s) | ≥0.3 | ≥0.3 | ≥0.3 | ≥0.3 | ≥0.25 | ≥0.25 |
Max. traveling speed （laden）(km/h) | 20 | 20 | 25.5 | 25.5 | 24 | 24 |
Fork tilt anger(front/rear) | 5/3 | 5/3 | 5/3 | 5/3 | 5/3 | 5/3 |
Minimum turning radius (mm) | 4300 | 4300 | 4550 | 4450 | 5800 | 5800 |
Gradeability （laden）(%) | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 |
Minimum ground clearance （laden）(mm) | 170 | 170 | 180 | 180 | 220 | 220 |
Platform height (mm) | 920 | 920 | 990 | 990 | 1340 | 1340 |
Platform width (mm) | 1200 | 1200 | 1220 | 1220 | 1760 | 1760 |
Fork length (mm) | 1200 | 1200 | 1200 | 1200 | 1650 | 1650 |
Max.fork spacing (mm) | 940 | 940 | 1012 | 1012 | 1310 | 1310 |
Axle spacing (mm) | 2460 | 2460 | 2700 | 2700 | 3700 | 3700 |
Wheel spacing (mm) | 1600 | 1600 | 1715 | 1715 | 2200/2110 | 2200/2110 |
Before/after(only) | 8.25-15 2/2 | 8.25-15 2/2 | 9.00-16 2/2 | 9.00-16 2/2 | 12.00-20 2/2 | 12.00-20 2/4 |
Overall dimension(L×W×H) (mm) | 4420×2035×2700 | 4420×2035×2700 | 4712×2065×2800 | 4712×2065×2800 | 6200×2600×3450 | 6200×2600×3450 |
Weight unladen (kg) | 5300 | 5500 | 7800 | 8300 | 13000 | 15000 |
Engine Model | 495BPG | 495BPG | R4105G22 | R4105G22 | LR6105 | LR6105 |
Norm power (Kw/rpm) | 42/2650 | 42/2650 | 58.8/2400 | 58.8/2400 | 77.2/2200 | 77.2/2200 |
Max.torque/speed (N.m/rpm) | 174/1900 | 174/1900 | 270/1680 | 270/1680 | 372/1400 | 372/1400 |
