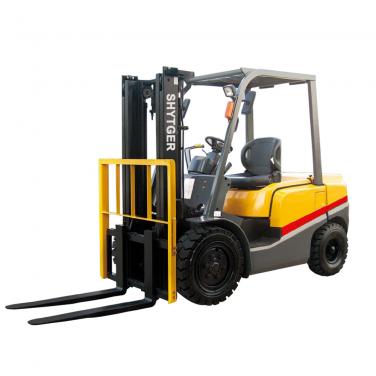

2.0-4.0 Ton Diesel Forklift(FD20-FD40) [fwi1a511]

Free Shipping for 3 pairs, Get 10% OFF over 5 pairs, Get 12% OFF over 7 pairs and more

US Dollar ($)

Need Help

cart

New Customer?Create an account

Home
Forklift
2.0-4.0 Ton Diesel Forklift(FD20-FD40)

Description
Reviews
Shipping & Returns

Standard equipments:
Wide view mast,Cyclone air cleaner,Load one-way value,Preheat indictor,King Pin,Engine-start switch,Standard backrest,Long-life tires,Overhead guard,Oil and water separator,Power steering,Adjustable steering column,Radiator water tank,Side roller,Standard carriage.Oil temperature cooler,Headlamp and steering indicator lamp,Charge indicator lamp,Hour meter,Oil warning light of engine.Water temperature guage,Fuel gauge,Reversing light,Electric horn,Neutral-safety switch,Rear mirrir,Tools,Reversing Buzzer,General seat.

Options:
Fire extingulsher,cab,Heater unit,Rear work light,Solid tires,Fireproof sliencer,Upper exhaust pipe,Tilt cylinder jacket,Rotating warning light,LPG conversion device,Pre-filtration air intake device.

Attachments:
Side shifter,Fork positioner,Carpet boom,Fork extension,Longer forks,Clamps,Others.

Features:
1.Cleaner,more efficient engines
2.Esay maintenance
3.Easier entry and exit form an extra-wide step

STANDARD SPECIFICATION:
General	1	Model				FD20T/C	FD25T/C	FD30T/C	FD35T/C	FD40T/C
	2	Power Type				Diesel			Diesel	Diesel
	3	Rated Capacity			kg	2000	2500	3000	3500	4000
	4	Load Centre			mm	500	500	500	500	500
Characteristic & Dimension	5	Lift Height			mm	3000	3000	3000	3000	3000
	6	Fork Size		L×W×T	mm	1070×122×40	1070×122×40	1070×125×45	1070×125×50	1070×150×50
	7	Mast Tilt Angle		F/R	Deg	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°
	8	Front Overhang (Wheel center to fork face)			mm	450	450	480	485	485
	9	Ground Clearance (Bottom of mast)			mm	110	110	120	120	120
	10	Overall Dimension		Length to face of fork (Without fork)	mm	2460	2530	2660	2720	3890
	10				mm	2460	2530	2660	2720	3890
	11			Overall Width	mm	1150	1150	1225	1285	1345
	12			Mast Lowered Height	mm	1995	1995	2075	2075	2150
	13			Mast Extended Height (With backrest)	mm	4030	4030	4250	4250	4250
	14			Overhead Guard Height	mm	2120	2120	2140	2140	2140
	15	Turning Radius (Outside)			mm	2170	2240	2400	2460	2560
Performance	16	Speed		Travel (Full load)	km/h	17	17	18	18	18
	17			Lifting (Full load)	mm/s	550	550	450	450	380/480
	17			Lifting (Full load)	mm/s	550	550	450	450	380/480
	18	Max. Gradeability			%	27/21	23/18	20	20	20
Chassis	19	Tire		Front		7.00-12-12PR	7.00-12-12PR	28×9-15-12PR	28×9-15-12PR	28×9-15-12PR
	20	Tire		Rear		6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR
	21	Wheelbase			mm	1600	1600	1700	1700	1800
	22	Service Weight			kg	3330	3670	4290	4690	5100
Power & Transmission	23	Battery	Voltage/Capacity		V/Ah	12/80	12/80	12/80	12/80	12/80
	23	Battery	Voltage/Capacity		V/Ah	12/80	12/80	12/80	12/80	12/80
	24	Engine	Model			ISUZU C240	XINCHAI C490	XINCHAI C490	XINCHAI C495	Chinese Engine GQ-4Y
	25		Manufacture			ISUZU	XINCHAI	XINCHAI	XINCHAI	China
	26		Fuel Tank Capacity		L	70	70	70	70	70
	28	Transmission	Type			T means Torque Converter, C means Clutch	T means Torque Converter, C means Clutch	T means Torque Converter, C means Clutch	T means Torque Converter, C means Clutch	T means Torque Converter, C means Clutch
