2.High strength vertical gearbox provides reliable uptime.
3.Low-noise and durable hydraulic unit,high quality cylinder as well as hose ensure the high reliability of hydraulic system.
4.AMP cnnecter and durable electric wires greatly reduce malfunctions of components.
5.One-time formed fork,box type frame and adjustable linkage extends the life of undercarriage.
6.Innovation drive floating operation system(DFA) ensures the stability of the truck when steering at high speed.
| Characteristics | ||||
|---|---|---|---|---|
| 1.1 | Manufacturer | HYTGER | ||

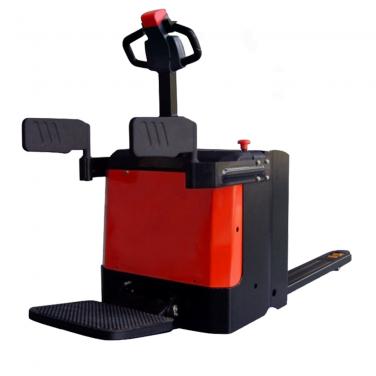

| 1.2 | Model designation | EPT20-20RA（S） | ||
| 1.3 | Drive unit | Battery | ||
| 1.4 | Operator type | Ride | ||
| 1.5 | Load capacity | Q (kg) | 2000 | |
| 1.6 | Load center | c (mm) | 600 | |
| 1.8 | Load distance (Raised/ Lowered) | x (mm) | 916/ 982 | 937/ 1003 |
| 1.9 | Wheelbase | y (mm) | 1380 | 1400 |
| Weights | ||||
| 2.1 | Service weight (Incl. battery) | kg | 670 | |
| 2.2 | Axle loading, laden front/ rear | kg | 1066/ 1604 | |
| 2.3 | Axle loading, unladen front/ rear | kg | 546/ 124 | |
| Wheels, Chassis | ||||
| 3.1 | Tyre type，operator side/ load side | PU/PU | ||
| 3.2 | Tyre size, operator side | Ф230x75 | ||
| 3.3 | Tyre size, load side | 2x Ф85x70 | ||
| 3.4 | Balance wheels (dimensions) | Ф130x60 | ||
| 3.5 | Wheels, number operator/load side (x=drive wheels) | 1x +2/2 or 4 | ||
| 3.6 | Tread, operator side | b10 (mm) | 510 | |
| 3.7 | Tread, load side | b11 (mm) | 370/ 515 | |
| Dimensions | ||||
| 4.4 | Lift height | h3 (mm) | 125 | |
| 4.9 | Height of tiller arm in operating position, min/ max | h14 (mm) | 1150/ 1470 | |
| 4.15 | Fork height, lowered | h13 (mm) | 85 | |
| 4.19 | Overall length | l1 (mm) | 1860 | 1930 |
| 4.20 | Length to face of forks | l2 (mm) | 710 | |
| 4.21 | Overall width | b1/ b2 (mm) | 730 | |
| 4.22 | Fork dimensions | s/ e/ l (mm) | 55x170x1150 | 55x170x1220 |
| 4.25 | Fork spread, min/ max | b5 (mm) | 540/ 685 | |
| 4.32 | Ground clearance, center of wheelbase | m2 (mm) | 50 | |
| 4.33 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | 1984 | |
| 4.34 | Aisle width, 800×1200 pallet lengthways | Ast (mm) | 2184 | |
| 4.35 | Outer turning radius | Wa (mm) | 1700 | 1725 |
| Performance | ||||
| 5.1 | Travel speed, laden/ unladen | km/ h | 7.5 /8.5 | |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.056/ 0.060 | |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.057/ 0.057 | |
| 5.8 | Maximum gradeability, laden/ unladen S2 5 min. | % | 8/16 | |
| 5.10 | Service brake | Electromagnetic | ||
| Drive | ||||
| 6.1 | Drive motor rating S2 60 min. | kW | 1.5 | |
| 6.2 | Lift motor rating at S3 15% | kW | 2.2 | |
| 6.4 | Battery voltage/ rated capacity (5h) | V/ Ah | 24/ 210 | |
| 6.5 | Battery weight (with box) | kg | 190 | |
| Others | ||||
| 8.1 | Type of drive control | AC ZAPI | ||
| 8.4 | Sound level at operator's ear | dB (A) | 74 | |
