◆ The Max. loading capacity: 2500kg
◆ The Max. lifting height is upto 6000mm
◆ Special Use of long size objects

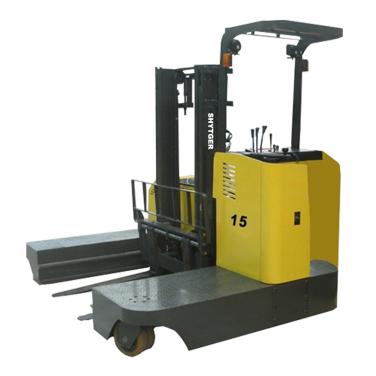

Side Loading Reach Forklift | |||||
Model | FND1530 | Fork tilt | deg | 2/7 | |
Load capacity | kg | 1500 | Fork length | mm | 920 |
Load center | mm | 500 | Outer width of forks | mm | 200~1000 |
Lifting height | mm | 3000 | Height of front leg | mm | 410 |
Lifting speed (Load/Unload) | mm/s | 120/270 | Reach distance | mm | 1105 |
Driving speed (Load/Unload) | km/h | 6.0/7.0 | Ground clearance | mm | 80 |
Turning radius | mm | 2590 | Frond wheel | mm | Φ267×114 |
Overall length | mm | 2450 | Drving wheel | mm | Φ343×125 |
Overall width | mm | 1830 | Balance wheel | mm | Φ180×76 |
Mast lowered height | mm | 1995 | Battery | V/Ah | 48/300 |
Mast extended height | mm | 4000 | Driving motor | kw | 5.5(AC) |
Overhead guard height | mm | 2330 | Lifting motor | kw | 6.3 |
