2.New integrated control head design,easy & comfortable operation.
3.Patent designed external control system not only protects controller in place but also provides easy access for maintenance.
4.Ergonomically-designed tiller head helps increase efficiency;internal charger for easy charging.
5.Handy emerhency disconnect button & durable driving unit ensure safety under any situation.
6.Assembly components,easy for diagnosis and replacing.
| Characteristics | |||
| 1.1 | Manufacturer | HYTGER | |

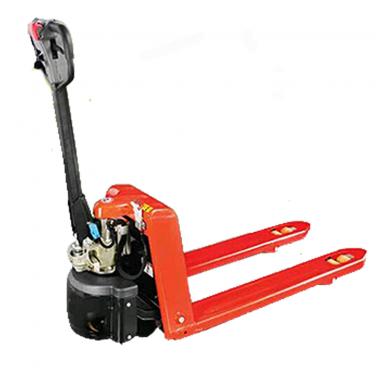

| 1.2 | Model designation | EPT20-15EHJ | |
| 1.3 | Drive unit | Semi Electric | |
| 1.4 | Operator type | Walkie | |
| 1.5 | Load capacity | Q (kg) | 1500 |
| 1.6 | Load center | c (mm) | 600 |
| 1.8 | Load distance (Raised/ Lowered) | x (mm) | 883/946 |
| 1.9 | Wheelbase | y (mm) | 1152/1215 |
| Weights | |||
| 2.1 | Service weight (Incl. battery) | kg | 140 |
| 2.2 | Axle loading, laden operator/load side | kg | 540/1100 |
| 2.3 | Axle loading, unladen operator/load side | kg | 110/30 |
| Wheels, Chassis | |||
| 3.1 | Tyre type | PU/ PU | |
| 3.2 | Tyre size, operator side | Ф210x70 | |
| 3.3 | Tyre size, load side | 2xΦ80x60(Φ74x88) | |
| 3.5 | Wheels, number operator/load side (x=drive wheels) | 1x/4 | |
| 3.7 | Tread, load side | 410(535) | |
| Dimensions | |||
| 4.4 | Lift height | h3 (mm) | 115 |
| 4.9 | Height of tiller arm in operating position, min/ max | h14 (mm) | 715/1280 |
| 4.15 | Fork height, lowered | h13 (mm) | 85(75) |
| 4.19 | Overall length | l1 (mm) | 1588 |
| 4.20 | Length to face of forks | l2 (mm) | 438 |
| 4.21 | Overall width | b1/ b2 (mm) | 560(685) |
| 4.22 | Fork dimensions | s/ e/ l (mm) | 55/ 150/ 1150 |
| 4.25 | Fork spread, min/ max | b5 (mm) | 560(685) |
| 4.32 | Ground clearance, center of wheelbase | m2 (mm) | 35 |
| 4.33 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | 1669 |
| 4.34 | Aisle width, 800×1200 pallet lengthways | Ast (mm) | 1869 |
| 4.35 | Outer turning radius | Wa (mm) | 1415 |
| Performance | |||
| 5.1 | Travel speed, laden/ unladen | km/ h | 3.5/4 |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 10mm/time |
| 5.3 | Lowering speed, laden/ unladen | m/ s | Hand Down |
| 5.8 | Maximum gradeability, laden/ unladen S2 5 min. | % | 2/ 6 |
| 5.10 | Service brake | Electromagnetic | |
| Drive | |||
| 6.1 | Drive motor rating S2 60 min. | kW | 0.65 |
| 6.2 | Lift motor rating at S3 15% | kW | Hand Lift |
| 6.3 | Battery compartment dimensions l/ w/ h | mm | 185/125/190 |
| 6.4 | Battery voltage/ rated capacity (5h) | V/ Ah | 24/ 30 |
| 6.5 | Battery weight | kg | 9.5×2 |
| Others | |||
| 8.1 | Type of drive control | DC | |
| Manufacturer | Mechanical | ||
| 8.4 | Sound level at operator's ear | dB (A) | 74 |
