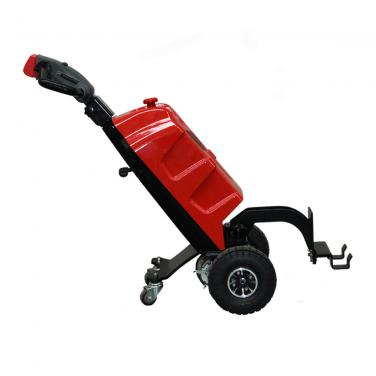

Suitable for pulling all kinds of trolley and box type transport vehicle,used in supermarket, medicine, airports, and distribution,etc.
| Characteristics | |||
| 1.1 | Manufacturer | HYTGER | |
| 1.2 | Model designation | QDD10 | |
| 1.3 | Drive unit | Battery | |
| 1.4 | Operator type | Walk | |
| 1.5 | Load capacity | Q (kg) | 1000 |
| 1.7 | Rated drawbar pull | F (N) | 200 |
| 1.9 | Wheelbase | y (mm) | 315 |
| Weights | |||
| 2.1 | Service weight | kg | 98 |
| 2.2 | Axle loading, laden front/ rear | 98/0 | |
| 2.3 | Axle loading, unladen front/ rear | kg | 500/ 650 |
| Wheels, Chassis | |||
| 3.1 | Tyre type | Pneumatic | |
| 3.2 | Tyre size, front | 2*ф250*85 | |
| 3.3 | Tyre size, rear | 2*ф75*32 | |
| 3.5 | Wheels, number front/ rear (x=drive wheels) | 2x/2 | |
| 3.6 | Tread, front | b10 (mm) | 428 |
| 3.7 | Tread, rear | b11 (mm) | 217 |
| Dimensions | |||
| 4.9 | Min./Max. operation handle | h14 (mm) | 1300 |
| 4.12 | Tow coupling height | h10 (mm) | 285/365 (235/315,340/420) |
| 4.19 | Overall length | l1 (mm) | 1255~1315~1345 |
| 4.21 | Overall width | b1/ b2 (mm) | 520 |
| Performance | |||
| 5.1 | Travel speed, laden/ unladen | km/ h | 4.5/5 |
| 5.5 | Drawbar pull | N | 200 |
| 5.6 | Maximum drawbar pull, laden/ unladen S2 5 min. | N | 650 |
| 5.8 | Maximum gradeability, laden/ unladen S2 5 min. | % | 3/16 |
| 5.10 | Service brake | Mechanical | |
| Drive | |||
| 6.1 | Drive motor rating S2 60 min. | kW | 0.4 |
| 6.3 | Battery dimensions l/ w/ h | mm | 196/165/175 |
| 6.4 | Battery voltage/ rated capacity (5h) | V/ Ah | 24/50 |
| 6.5 | Battery weight | kg | 2*19 |
| Others | |||
| 8.1 | Type of drive control | DC | |
| 10.5 | Drive Type | Mechanical | |
| 10.7 | Sound level at operator's ear | dB (A) | 74 |
| 1.0.8 | Tow coupling | DIN | |
